Afton Brick and Tile Works, New Cumnock, East Ayrshire


1927 – Afton brickworks were built. They were situated near the old Afton No 2 colliery belonging to the Lanemark Coal Company, which was absorbed by New Cumnock Collieries in 1909. Already making BANK bricks at Bank Pit since the late 1880-90s, they probably just used the Afton label, especially as William Hyslop was now Laird of Bank – and Afton, and if, as I suspect they also used blaes from the old Afton No2 to make common bricks as well as terracotta bricks from 1927 at their new brickworks, they could have used Lanemark to distinguish from their BANK bricks. (Information provided by James Begg following research from the New Cumnock Coalfield book).

09/04/1930 – Dundee Evening Telegraph – New Dundee Primary School opens … Externally the property is faced with Afton multi-coloured bricks … The surrounding wall of the playground on the southern side of the school and the railing walls are built of Shotts grey brick.

19/10/1931 – The Scotsman – Pit baths at New Cumnock … The building is of brick supplied by the Afton Terra Cotta Company and presents a fine appearance.

09/03/1935 – Dundee Evening Telegraph – The new St Martins Episcopal School opens in Dundee … It is of brick construction, faced with warmly tinted Afton rustic brick …

17/06/1936 – Dundee Courier – Scottish inventions – W. Greenhough, c/o the Afton Terracotta Brick and Tile Works, New Cumnock, Ayrshire and the New Cumnock Collieries, Ltd, Bank, New Cumnock – interlocking tiles for covering buried cables. – Electric cable covers.

17/07/1936 – Montrose, Arbroath and Brechin Review – Proposed new housing Ferry Street and Hill Street, Montrose … It has been suggested to the Department that Buccleuch bricks be used instead of the Afton Terracotta facing brick suggested by the Department …

Below – 1944 – 1967 – Afton Brickworks as per the buildings depicted to the top left. The lumps and bumps to the lower middle are what was left of the Lanemark Brickworks.

16/04/1957 – Birmingham Post. Brickworks speed up. A highly mechanised brickworks opened at New Cumnock Ayrshire yesterday, will be able to produce daily between 20,000 and 25,000 facing bricks of various colours with a staff of 23 men.

25/04/1957 – Dalkeith Advertiser – The most highly and up-to-date brickworks in Britain, capable of producing between 30,000 and 35,000 bricks a day with a staff of only 24 people have been opened at New Cumnock, Ayrshire. Mr J. C. George, a director of Afton Bricks Ltd., said the company planned to supply architects with “the missing Scottish link between the drab, monotonous architecture of to-day and the brighter building of tomorrow.” “In my view, it is time that Scotland turned to new ideals and left behind it the monotony of post-war building. It is time architects were free to reintroduce beauty into building. It is a strange paradox that when we show the architecture of Scotland to foreign visitors, it is to the buildings erected in supposedly poorer times that we direct their gaze. Nothing in the last 20 years is singled out by us for their admiring attention. This is not the fault of the architects. The economy has dominated these years and economy assassinates inspiration.”

07/11/1961  – Aberdeen Evening Express – House for sale at Rednock, Milltimber Brae, Aberdeen that has been built from ” Afton facing brick”.

Oct 1962 – Clay Workers magazine (V71 845) – For sale. Stone ejector machine with 20hp motor. Afton Bricks Ltd, New Cumnock, Ayrshire. (Info from Ann Los, East Yorks).

Below – 1965 – Scottish Building & Civil Engineering 1965 yearbook – Thistle Holdings ( Sales) Ltd, 8 Lynedoch Crescent, Glasgow – Afton clay facing brick.
Thistle Advert (1)
Below – 05/03/1969 – The Scotsman – Thistle Holdings – Afton Bricks Limited.
July 1970 – Clay Workers magazine – Due to an increase in demand, brick production to rise from 3000 to 8000 per hour. Rustic, stipple or sand-faced textures in copper, red, golden brown, blue, brindle or multi-colour. Afton Bricks Ltd, New Cumnock, Ayrshire. (Info from Ann Los, East Yorks).
 Below – 04/01/1971 – Aberdeen Press and Journal – Agent/Salesman wanted. Apply Managing Director, Afton Bricks Limited, 8 Lynedoch Crescent, Glasgow.
Below – 23/08/1977 – Aberdeen Press and Journal. Land and buildings for sale – previously the brickworks at New Cumnock – Afton Bricks Limited.
The following are snippets I recovered from notes kept by a brick enthusiast.

July 1970 – Clay Worker Magazine? – Afton bricks, New Cumnock  – Increase in demand  – from 3000 to 8000/ hour.  Rustic, stipple or sand faced textures in copper red,  golden brown, blue, brindle or multi-colour.

May 1971 – Clay Worker Magazine  – Oct 1971 – Afton puts Scotland on facings map P12  (Afton Bricks Ltd. New Cumnock, Ayrshire) – Clay Worker Magazine – May 1971 Afton Bricks Ltd. 8 Lynedoch Crescent, Glasgow C3 – want 12,000 metal pallets for firebrick drier.
July 1972 – Afton Bricks Limited, Larbert, Stirlingshire –  Clay Worker Magazine July 1972 – Oil firing equipment wanted.

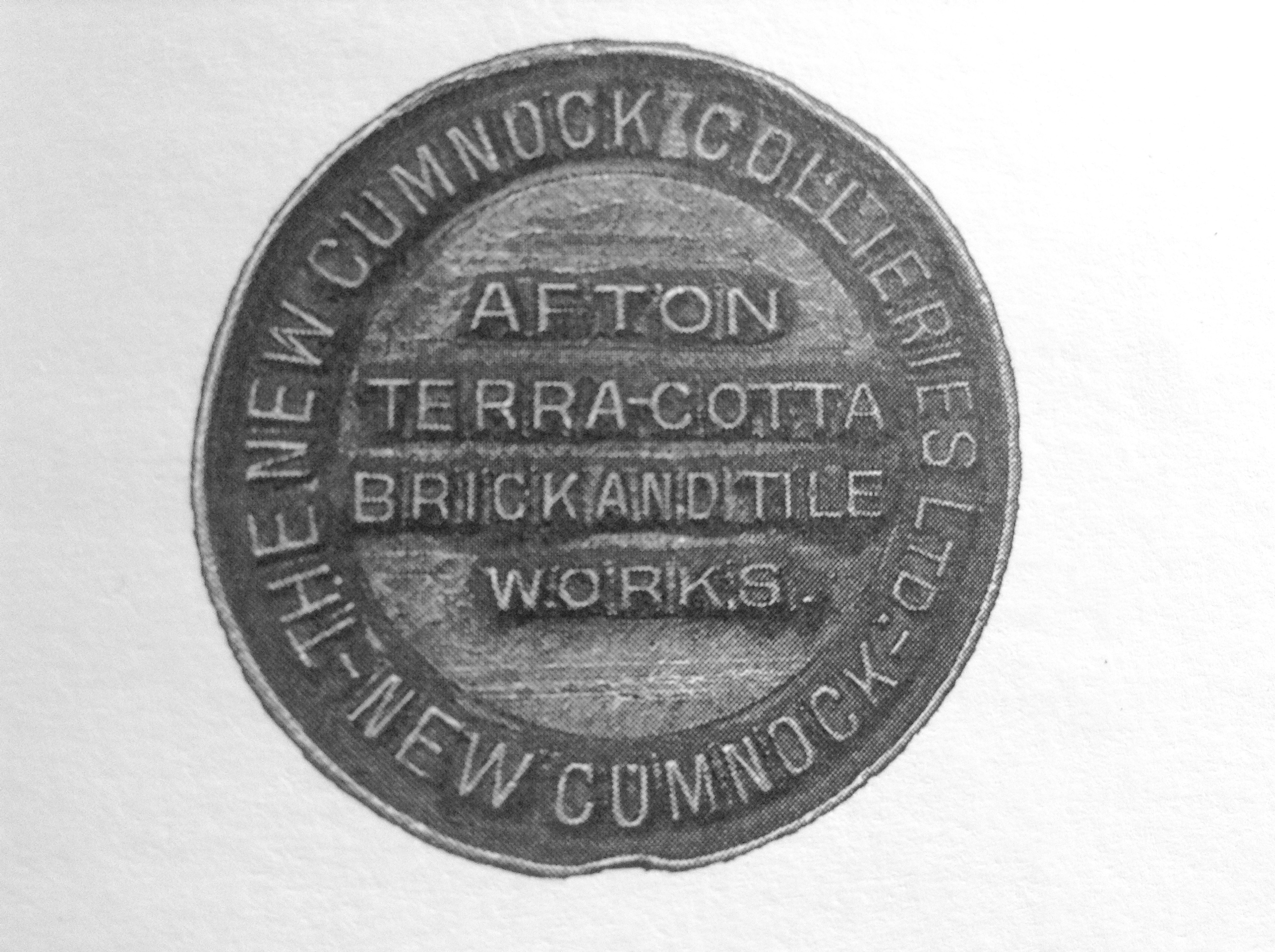

Below – unknown date – ‘Mining Ayrshire’s Lost History’ by Guthrie Hutton – New Cumnock Collieries  Afton Terracotta brick and tile works token.

New Cumnock Collieries Afton Terracotta brick and tile works


I am very much obliged to Dave Santus for the following information –

I  joined Afton in late spring 1972 and left shortly before it closed in summer 1976. I joined as assistant manager but after about 2 years the works manager left and I was made manager. It is a long time ago and I do not have any literature about the factory but I have tried to remember as much as I can. Afton was part of Thistle Holdings who also owned the Avonbridge brickworks near Stirling and 3 peat bogs in Fife who traded as Caledonian Peat Products. Thistle was owned by Northern Lime ltd who had offices in Penrith. Northern Lime, in turn, was owned by London and Northern Securities Ltd. Thistle holdings head office was in Glasgow when I started but it moved to offices in Denny during my stay. My Managing Director was Ken Whamond.

I can only tell you about Afton when I was there as I don’t know or remember any of its history, we only made an extruded product so I don’t know when the pressed bricks stamped with the Afton name were made

We dug our own clay from a quarry about 2/3 miles from the factory and when I started we brought it in by road but subsequently, we refurbished a bridge behind the factory so we could bring it in across the country, about a mile. We used a Ruston-Bucyrus Digger but I cannot remember the size or type when we refurbished the bridge we used a Shawnee Poole dump truck to deliver the clay. The clay was boulder clay which was very difficult to handle and use because of the large number of stones in it, they varied from small pebbles to the size if a small car. Because of the stone content, we had a clay preparation department unlike any other I have worked with. The clay was tipped into a Thos Fawcett slat box feeder which fed the clay into a set of Bradley and Craver Kibbler Rolls, it was then fed onto a conveyor belt where an operative tried  to pick off  as much stone as he could before the clay was fed into  a Bradley and Craven solid bottom pan  mill, from this pan mill the clay was delivered into a Bradley and Craven wet Pan, I cannot remember the production rate or the number of bricks we made per day,40,000 a day rings a bell but I could not be certain. Even with a relatively low production rate, after leaving the wet pan the clay feed was divided into two lines both of which passed the clay through 2 sets of high-speed rolls, one pair were Bradley and Craven, the second pair was from Europe but I cannot remember the make. The clay from both these lines was reunited in a Bradley and Craven slatted base box feeder prior to going into the make area. The mixer and extruder were manufactured by Concordia, it was the only one of its type in the UK, there were 2 other Concordia’s in the country but they were of a smaller size, it was made predominately for soft extrusion and the very abrasive nature of our clay meant the auger knife tips had to be changed every week and new knife tips fitted. During my time there we had new patterns made to suit the Concordia’s circular shaft with the Bradley and Craven design one-piece auger knives, we had them cast especially for ourselves in a material which was much more abrasive resistant than the original German ones, again I cannot remember the steel specification. After the extruder we had an old stippletex machine, a rusticator a Basin Sander, which were used to texture and sand the bricks depending on which product we were manufacturing. The column was cut into length by a Keller single-arm cutter and the column then went into a side cutter where the individual bricks were cut. The marshalling and handling prior to going into the dryer was by a George Willy pallet handling system, this both marshalled the pallets for the finger car prior to drying but also marshalled the bricks and removed them from the pallets after drying. The pallets of bricks were taken to and from the dryers by a finger car, originally a Keller car but this had been replaced by a Bradley and Craven car. The individual bricks were taken by a conveyor to an area where they were hand-packed into packs to suit the part of the kiln they were to be set in. Fork truck set.

The dryers were originally Keller type heated with finned hot water pipes running below the pallets of bricks, the water was heated by a Lancashire boiler. The dryer had been modified prior to my arrival. I cannot remember how many tracks there were but they had been modified by removing two of the walls to make 3 track into 2, the middle track then held a number of fans to circulate the hot air which was fed in from above. The heat was waste heat from the kiln. A second set of dryers had been built, I cannot remember the exact number but these were heated by a separate burner, again I cannot remember the fuel type.

We had 2, 20 chamber Hoffman Kilns, one a traditional brick-lined kiln with flues around the outside, the other an unusual castable lined kiln with flues running in the centre of the kiln. The dampers were wound up from the top of the kiln. They were heated with 800secs medium fuel oil. I can`t remember the type of burner being used when I arrived but shortly after my arrival, we purchased new burners, ‘Steimer Perfect’. Firing these kilns was fired in the normal way with chambers being papered off to connect them the flue draught. The bricks were fork truck set, the packs of dried bricks being shaped to suit the position in the kiln. When I arrived the bricks were packed inside the kiln chamber on trolleys, once the pack had been strapped the trolley was pushed outside the kiln to be picked up by forklift truck to go to stock. This method of packing was subsequently changed, pack building stillages were purchased and an outside packing area constructed. The fired bricks were then drawn from the kiln by fork truck and packed on the stillages, strapped and then taken to stock. We could not manufacture a class B engineering brick as we could not meet the water absorption requirements although the crushing strength could be met so Afton Engineering bricks were sold as class7. We also produced a variety of sand faced bricks in a number of colours. Stippletex and rustic bricks were also produced.

The sales were controlled from the Glasgow then Denny office with orders being sent to the factory on a daily basis, our main Hauler was Yuill and Dodds Ltd  Strathaven, who had 4 artics delivering bricks, they had 8 trailers so the empty trailers were left at the yard to be loaded ready for the returning lorries to pick up. One sales representative was on the road.

We employed about 40/50, sorry I cannot remember exactly, this included 2 ladies in the office, 2 fitters and 2 electricians. Almost all the employees lived in New Cumnock and the factory had 2 vans fitted with seats which went round the housing scheme providing transport to and from the works.

Dealing with our difficult raw material and its abrasive nature meant that our production cost were high for our output and brick quality so making a profit was always difficult and it was obvious to me that the factory would have to close. I found another job with Ibstock Brick Leicester Ltd and left. About 6/8 weeks after I left the factory closed.
